2Amp Gate Drive Optocoupler with Integrated (VcE) Desaturation Detection and Fault Status Feedback HCPL-316J

2.0 Amp Gate Drive Optocoupler

with Integrated (V_CE) Desaturation

Detection and Fault Status

Feedback

Technical Data

Features                                                                                                                          Package Pin Out

• Drive IGBTs up to

  I_C = 150 A, V_CE = 1200 V

• Optically Isolated, FAULT

  Status Feedback

• SO-16 Package

• CMOS/TTL Compatible

• 500 ns Max. Switching

  Speeds

• “Soft” IGBT Turn-off

• Integrated Fail-Safe IGBT

  Protection

  – Desat (VCE) Detection

  – Under Voltage Lock-Out

     Protection (UVLO) with

     Hysterisis

• User Configurable:

  Inverting, Non-inverting,

  Auto-Reset, Auto-Shutdown

• Wide Operating VCC Range:

  15 to 30 Volts

• -40°C to +100°C Operating

  Temperature Range

• 15 kV/µs Min. Common Mode

  Rejection (CMR) at

  V_CM = 1500 V

• Regulatory Approvals: UL,

  CSA, IEC/EN/DIN EN 60747-

  5-2 (891 Vpeak Working

  Voltage)

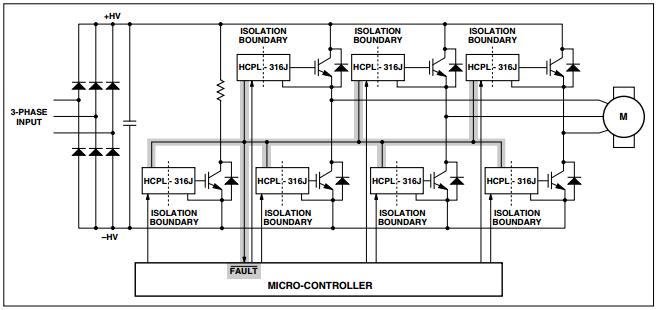

Fault Protected IGBT Gate Drive

Agilent’s 2.0 Amp Gate Drive Optocoupler with Integrated Desaturation (VCE) Detection and Fault Status Feedback makes IGBT V_CE fault protection compact, affordable, and easy-to-implement while

satisfying worldwide safety and regulatory requirements.
