Silicon PNP Power Transistors 2SB861



DESCRIPTION New & Original Silicon PNP Power Transistors, TO-220C package 2SB861

·With TO-220C package

·Complement to type 2SD1138



APPLICATIONS

·Low frequency power amplifier color TV vertical deflection output



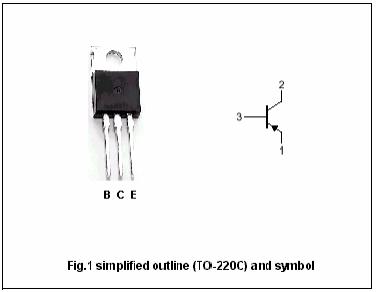

PINNING

  PIN       DESCRIPTION
   1   Emitter
   2

  Collector;connected to

  mounting base
   3   Base







Absolute maximum ratings(Ta=25℃)

 SYMBOL            PARAMETER       CONDITIONS    VALUE   UNIT
  VCBO   Collector-base voltage   Open emitter   -200   V
  VCEO   Collector-emitter voltage   Open base   -150   V
  VEBO   Emitter-base voltage   Open collector    -6   V
   IC   Collector current      -2   A
  ICP   Collector current-Peak      -5   A
  PC   Collector power dissipation   Ta=25℃    1.8   W
  TC=25℃     30
  Tj   Junction temperature      150   ℃
  Tstg   Storage temperature    -45~150   ℃



PACKAGE OUTLINE

New & Original Silicon PNP Power Transistors, TO-220C package 2SB861

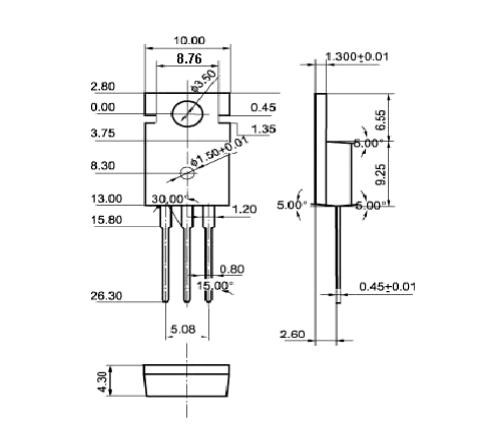

     Fig.2 Outline dimensions (unindicated tolerance:±0.10 mm)
