L7815CV Integrated Circuit Chip New & Original Positive voltage regulators

Name: L7815CV Integrated Circuit Chip New amp Original Positive voltage regulators
Brand: Anterwell
Price: 1 USD

Brand Name : Anterwell

Model Number : L7815CV

Certification : new & original

Place of Origin : original factory

MOQ : 10pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 5600pcs

Delivery Time : 1 day

Packaging Details : Please contact me for details

DC input voltage (for VO= 5 to 18 V) : 35 V

DC input voltage(for VO= 20, 24 V) : 40 V

Output current : Internally limited

Power dissipation : Internally limited

Storage temperature range : -65 to 150 °C

Operating junction temperature range(for L7800C) : 0 to 150 °C

Contact Now

Positive voltage regulators

Features

■ Output current to 1.5 A

■ Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V

■ Thermal overload protection

■ Short circuit protection

■ Output transition SOA protection

Description

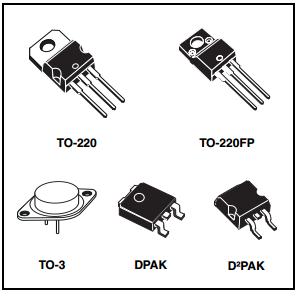

The L78xx series of three-terminal positive regulators is available in TO-220, TO-220FP, TO-3, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.

Absolute maximum ratings

Symbol	Parameter		Value	Unit
V_I	DC input voltage	for V_O= 5 to 18 V	35	V
		for V_O= 20, 24 V	40
I_O	Output current		Internally limited
P_D	Power dissipation		Internally limited
T_STG	Storage temperature range		-65 to 150	°C
T_OP	Operating junction temperature range	for L7800	-55 to 150	°C
		for L7800C	0 to 150

Note: Absolute maximum ratings are those values beyond which damage to the device may occur. Functional operation under these condition is not implied.

L7815CV Integrated Circuit Chip New & Original Positive voltage regulators

Figure 1. Block diagram

L7815CV Integrated Circuit Chip New & Original Positive voltage regulators

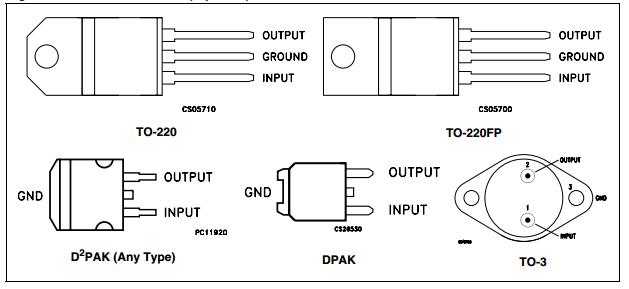

Figure 2. Pin connections (top view)

L7815CV Integrated Circuit Chip New & Original Positive voltage regulators

Figure 3. Schematic diagram

L7815CV Integrated Circuit Chip New & Original Positive voltage regulators
