New & Original Dmos Driver For Bipolar Stepper Motor L6228d

Anterwell Technology Ltd.
Contact Now

New & Original Dmos Driver For Bipolar Stepper Motor L6228d

Brand Name : Anterwell

Model Number : L6228D

Certification : new & original

Place of Origin : original factory

MOQ : 10pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 5600pcs

Delivery Time : 1 day

Packaging Details : Please contact me for details

Supply Voltage : 60 V

Bootstrap Peak Voltage : VS + 10 V

Input and Enable Voltage Range : -0.3 to +7 V

Voltage Range at pins VREFA and VREFB : -0.3 to +7 V

Voltage Range at pins SENSEA and SENSEB : -1 to +4 V

Pulsed Supply Current : 3.55 A

RMS Supply Current (for each VS pin) : 1.4 A

Storage and Operating Temperature Range : -40 to 150 °C

Contact Now



DMOS DRIVER FOR BIPOLAR STEPPER MOTOR



■ OPERATING SUPPLY VOLTAGE FROM 8 TO 52V

■ 2.8A OUTPUT PEAK CURRENT (1.4A RMS)

■ RDS(ON) 0.73Ω TYP. VALUE @ Tj = 25°C

■ OPERATING FREQUENCY UP TO 100KHz

■ NON DISSIPATIVE OVERCURRENT PROTECTION

■ DUAL INDEPENDENT CONSTANT tOFF PWM CURRENT CONTROLLERS

■ FAST/SLOW DECAY MODE SELECTION

■ FAST DECAY QUASI-SYNCHRONOUS RECTIFICATION

■ DECODING LOGIC FOR STEPPER MOTOR FULL AND HALF STEP DRIVE

■ CROSS CONDUCTION PROTECTION

■ THERMAL SHUTDOWN

■ UNDER VOLTAGE LOCKOUT

■ INTEGRATED FAST FREE WHEELING DIODES



TYPICAL APPLICATIONS

■ BIPOLAR STEPPER MOTOR



DESCRIPTION

The L6228 is a DMOS Fully Integrated Stepper Motor Driver with non-dissipative Overcurrent Protection, realized in MultiPower-BCD technology, which combines isolated DMOS Power Transistors with CMOS and bipolar circuits on the same chip. The device includes all the circuitry needed to drive a two-phase bipolar stepper motor including: a dual DMOS Full Bridge, the constant off time PWM Current Controller that performs the chopping regulation and the Phase Sequence Generator, that generates the stepping sequence. Available in PowerDIP24 (20+2+2), PowerSO36 and SO24 (20+2+2) packages, the L6228 features a non-dissipative overcurrent protection on the high side Power MOSFETs and thermal shutdown.

New & Original Dmos Driver For Bipolar Stepper Motor L6228d

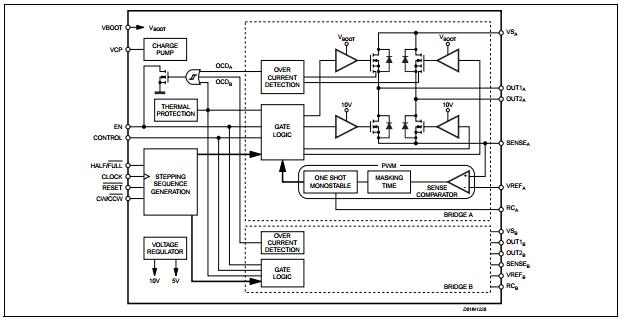

BLOCK DIAGRAM

New & Original Dmos Driver For Bipolar Stepper Motor L6228d



ABSOLUTE MAXIMUM RATINGS

  Symbol          Parameter        Test conditions     Value   Unit
   VS  Supply Voltage  VSA = VSB = VS       60    V
   VOD

 Differential Voltage between

 VSA, OUT1A, OUT2A, SENSEA and VSB, OUT1B, OUT2B, SENSEB

 VSA = VSB = VS = 60V;

VSENSEA = VSENSEB = GND

      60    V
   VBOOT  Bootstrap Peak Voltage  VSA = VSB = VS    VS + 10    V
  VIN,VEN  Input and Enable Voltage Range      -0.3 to +7    V

  VREFA,

  VREFB

 Voltage Range at pins VREFA and VREFB      -0.3 to +7    V

  VRCA,

  VRCB

 Voltage Range at pins RCA and RCB     -0.3 to +7    V

 VSENSEA,

 VSENSEB

 Voltage Range at pins SENSEA and SENSEB      -1 to +4    V
  IS(peak)  Pulsed Supply Current (for each VS pin), internally limited by the overcurrent protection

 VSA = VSB = VS;

 tPULSE < 1ms

   3.55    A
   IS  RMS Supply Current (for each VS pin)  VSA = VSB = VS     1.4    A

  Tstg,

  TOP

 Storage and Operating Temperature Range     -40 to 150   °C
