30EPH06PBF Integrated Circuit Chip Hyperfast Rectifier, 30 A FRED PtTM

Name: 30EPH06PBF Integrated Circuit Chip Hyperfast Rectifier 30 A FRED PtTM
Brand: Anterwell
Price: 1 USD

Brand Name : Anterwell

Model Number : 30EPH06PBF

Certification : new & original

Place of Origin : original factory

MOQ : 10pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 5600pcs

Delivery Time : 1 day

Packaging Details : Please contact me for details

Peak repetitive reverse voltage : 600 V

Average rectified forward current : 30 A

Non-repetitive peak surge current : 300 A

Operating junction and storage temperatures : - 65 to 175 °C

Junction capacitance : 33 pF

Series inductance : 3.5 nH

Contact Now

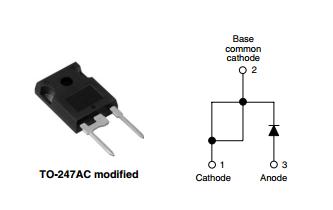

Hyperfast Rectifier, 30 A FRED Pt^TM

FEATURES 30EPH06PBF Integrated Circuit Chip Hyperfast Rectifier, 30 A FRED PtTM

• Hyperfast recovery time

• Low forward voltage drop

• Low leakage current

• 175 °C operating junction temperature

• Single diode device

• Lead (Pb)-free (“PbF” suffix)

• Designed and qualified for industrial level

DESCRIPTION/APPLICATIONS

State of the art hyperfast recovery rectifiers designed with optimized performance of forward voltage drop, hyperfast recovery time and soft recovery.

The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characteristics.

These devices are intended for use in PFC boost stage in the AC-DC section of SMPS, inverters or as freewheeling diodes.

Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce over dissipation in the switching element and snubbers.

PRODUCT SUMMARY

t_rr(typical)	28 ns
I_F(AV)	30 A
V_R	600 V

ABSOLUTE MAXIMUM RATINGS

PARAMETER	SYMBOL	TEST CONDITIONS	VALUES	UNITS
Peak repetitive reverse voltage	V_RRM		600	V
Average rectified forward current	I_F(AV)	T_C = 116 °C	30	A
Non-repetitive peak surge current	I_FSM	T_J = 25 °C	300	A
Operating junction and storage temperatures	T_J, T_Stg		- 65 to 175	°C
