BD9897FS Integrated Circuit Chip Silicon Monolithic Integrated Circuit

Anterwell Technology Ltd.
Contact Now

BD9897FS Integrated Circuit Chip Silicon Monolithic Integrated Circuit

Brand Name : Anterwell

Model Number : BD9897FS

Certification : new & original

Place of Origin : original factory

MOQ : 10pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 4800pcs

Delivery Time : 1 day

Packaging Details : Please contact me for details

Supply Voltage : 36 V

BST-SW voltage difference : 7 V

Operating Temperature Range : -40~+85 ℃

Storage Temperature Range : -55~+150 ℃

Maximum Junction Temperature : +150 ℃

Power Dissipation : 950 mW

Contact Now



STRUCTURE                            Silicon Monolithic Integrated Circuit



NAME OF PRODUCT                DC-AC Inverter Control IC



TYPE                                         BD9897FS



FUNCTION           ・ 36V High voltage process

                            ・ 1ch control with Full-Bridge

                            ・ Lamp current and voltage sense feed back control

                            ・ Sequencing easily achieved with Soft Start Control

                            ・ Short circuit protection with Timer Latch

                            ・ Under Voltage Lock Out

                            ・ Mode-selectable the operating or stand-by mode by stand-by pin

                            ・ Synchronous operating the other BD9897FS IC’s

                            ・ BURST mode controlled by PWM and DC input

                            ・ Output liner Control by external DC voltage





Absolute Maximum Ratings(Ta = 25℃)

Parameter Symbol Limits Unit
Supply Voltage VCC 36 V
BST pin BST 40 V
SW pin SW 36 V
BST-SW voltage difference BST-SW 7 V
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -55~+150
Maximum Junction Temperature Tjmax +150
Power Dissipation Pd 950* mW

* Pd derate at 7.6mW/℃ for temperature above Ta = 25℃ (When mounted on a PCB 70.0mm×70.0mm×1.6mm)

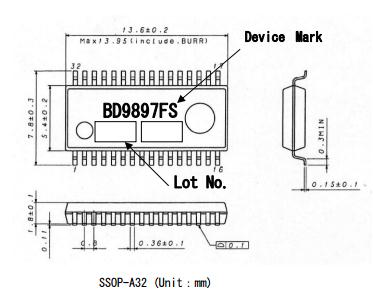

Package Dimensions

BD9897FS Integrated Circuit Chip Silicon Monolithic Integrated Circuit

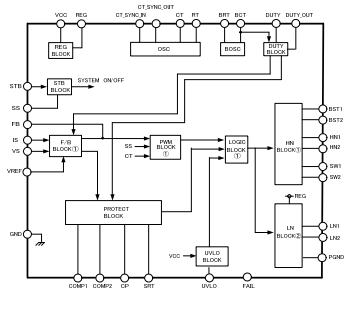

Block Diagram

BD9897FS Integrated Circuit Chip Silicon Monolithic Integrated Circuit
