TEA5114A single integrated circuit Integrated Circuit Chip RGB SWITCHING CIRCUIT

Product Categories
Anterwell Technology Ltd.
Contact Now

TEA5114A single integrated circuit Integrated Circuit Chip RGB SWITCHING CIRCUIT

  • 1
  • 2

Brand Name : Anterwell

Model Number : TEA5114A

Certification : new & original

Place of Origin : original factory

MOQ : 10pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 8200pcs

Delivery Time : 1 day

Packaging Details : Please contact me for details

Supply Voltage : 18 V

Junction Temperature : – 40 to 150 °C

Storage Temperature : – 40 to 150 °C

Minimum Load Resistor on Each Output VCC = 12 V : 300 Ω

Operating Ambient Temperature : 0 to 70 °C

Junction-ambient Thermal Resistance : 80 °C/W

Contact Now



TEA5114A single integrated circuit Integrated Circuit Chip RGB SWITCHING CIRCUIT

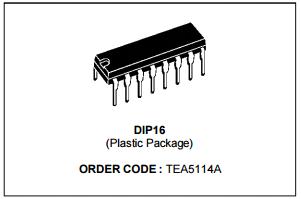

TEA5114A



RGB SWITCHING CIRCUIT



. 25MHz BANDWIDTH

. CROSSTALK : 55dB

. SHORT CIRCUIT TO GROUND OR VCC PROTECTED

. ANTI SATURATION GAIN CHANGING

. VIDEO SWITCHING



DESCRIPTION

This integrated circuit provides RGB switching allowing connections between peri TV plug, internal RGB generator and video processor in a TV set. The input signal black level is tied to the same reference voltageon each input in order to haveno differential voltage when switching two RGB generators.

An AC output signal higher than 2 Vpp makes gain goingslowly down to 0dBto protect the TV set video amplifier from saturation.

Fast blanking output is a logicial OR between FB1 (Pin 8) and FB2 (Pin 10).



ABSOLUTE MAXIMUM RATINGS

Symbol Parameter Value Unit
VCC Supply Voltage 18 V
Tj Junction Temperature – 40 to 150 °C
Tstg Storage Temperature – 40 to 150 °C
ZL

Minimum Load Resistor on Each Output VCC = 12 V

                                                                VCC = 10 V

300

150

Ω

Ω
Tamb Operating Ambient Temperature 0 to 70 °C



TEA5114A single integrated circuit Integrated Circuit Chip RGB SWITCHING CIRCUIT

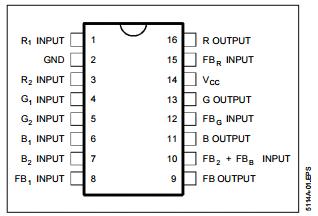

PIN CONNECTIONS

TEA5114A single integrated circuit Integrated Circuit Chip RGB SWITCHING CIRCUIT

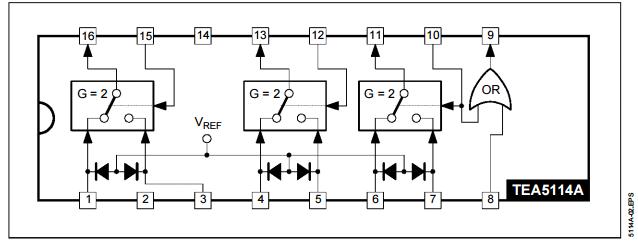

BLOCK DIAGRAM

TEA5114A single integrated circuit Integrated Circuit Chip RGB SWITCHING CIRCUIT

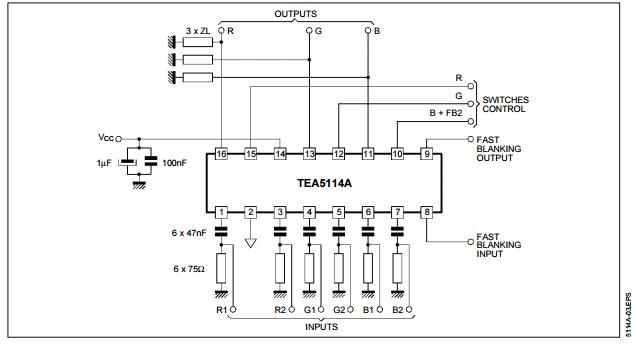

TEST DIAGRAM

TEA5114A single integrated circuit Integrated Circuit Chip RGB SWITCHING CIRCUIT

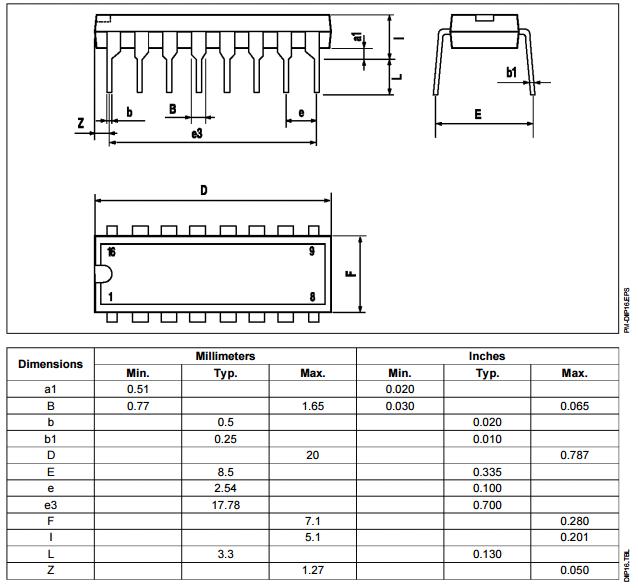

PACKAGE MECHANICAL DATA

16 PINS – PLASTIC DIP

TEA5114A single integrated circuit Integrated Circuit Chip RGB SWITCHING CIRCUIT
