SS32 Schottky Barrier Diode Surface Mount Schottky Barrier Rectifier

Product Categories

Anterwell Technology Ltd.

Contact Now

SS32 Schottky Barrier Diode Surface Mount Schottky Barrier Rectifier

Name: SS32 Schottky Barrier Diode Surface Mount Schottky Barrier Rectifier
Brand: Anterwell
Price: 1 USD

Brand Name : Anterwell

Model Number : SS32

Certification : new & original

Place of Origin : original factory

MOQ : 20pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 8800pcs

Delivery Time : 1 day

Packaging Details : Please contact me for details

Maximum average forward rectified current : 3.0 A

Peak forward surge current (JEDEC Method) : 80.0 A

Maximum thermal resistance, Junction to Ambient : 17 ℃/W

Typical Junction Capacitance : 300 pf

Operating junction temperature range : -50 to +125 ℃

Storage Temperature Range : -65 to +150 ℃

Contact Now

SS32 Schottky Barrier Diode Surface Mount Schottky Barrier Rectifier

Features

SS32 Schottky Barrier Diode Surface Mount Schottky Barrier Rectifier

• Low Profile in SMC Package

• Low power loss, high efficiency

• Low Forward Voltage Drop

• Plastic package has Underwriters Laboratory Flammability Classification 94V-0

• RoHS Compliant

Mechanical Data

Case: JEDEC DO-214AB(SMC) molded plastic

Terminals: Solder plated, solderable per MIL-STD-750, Method 2026

Polarity: Color band denotes the cathode end

Weight: 0.007 Ounce, 0. 21 gram

Maximum Ratings & Electrical Characteristics (T_Ambient=25ºC unless noted otherwise)

Symbols	Description	SS32	SS33	SS34	SS35	SS36	SS38	SS39	SS310	Unit
V_RMS	Maximum RMS voltage	14	21	28	35	42	56	63	70	V
V_RRM	Maximum repetitive peak reverse voltage	20	30	40	50	60	80	90	100	V
V_DC	Maximum DC blocking voltage	20	30	40	50	60	80	90	100	V
I_(AV)	Maximum average forward rectified current (FIG.1)	3.0								A
I_FSM	Peak forward surge current (JEDEC Method)	80.0								A
V_F	Maximum instantaneous forward voltage at 3.0A	0.50			0.70		0.85			V
I_R	Maximum DC reverse current at rated DC blocking voltage	TA =25°C 2.0								mA
I_R	Maximum DC reverse current at rated DC blocking voltage	TA =100°C 20.0								mA
R_θJA	Maximum thermal resistance, Junction to Ambient	17								°C/W
C_J	Typical Junction Capacitance (NOTE)	300								pf
T_J	Operating junction temperature range	-50 to +125			-50 to +150					°C
T_STG	Storage Temperature Range	-65 to +150								°C

NOTES: Measured at 1MHz and applier reverse voltage of 4.0VDC.

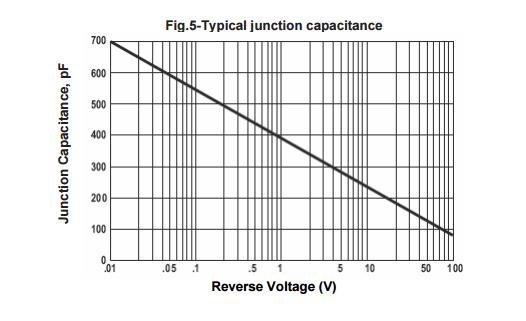

Typical Characteristics Curves

SS32 Schottky Barrier Diode Surface Mount Schottky Barrier Rectifier

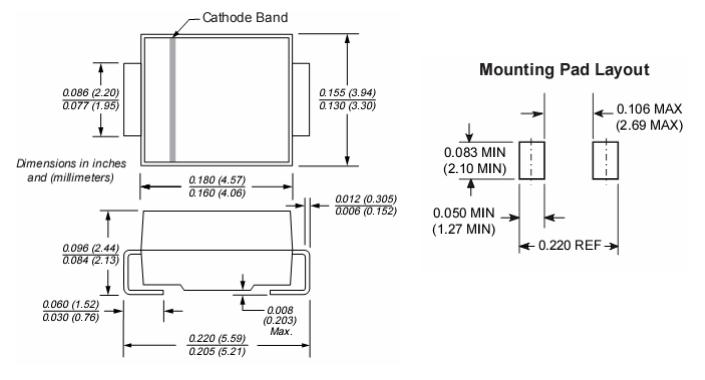

Dimensions in inches (mm)

SS32 Schottky Barrier Diode Surface Mount Schottky Barrier Rectifier
