P6KE68A 600 Watts Transient Voltage Suppressor double diode model

Product Categories

Anterwell Technology Ltd.

Contact Now

Brand Name : TSC

Model Number : P6KE68A

Certification : Original Factory Pack

Place of Origin : Original

MOQ : 50pcs

Price : negotiation

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 5200PCS

Delivery Time : 1 day

Packaging Details : please contact me for details

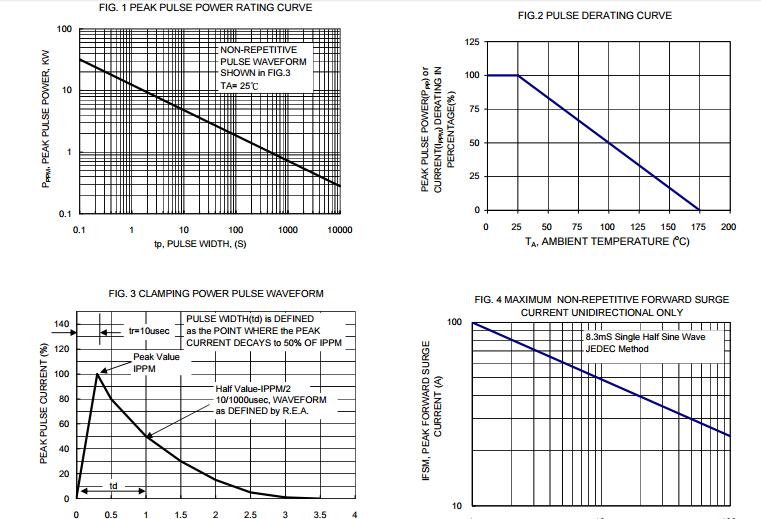

PPK : 600 Watts

PD : 5 Watts

IFSM : 100 Amps

VF : 3.5 / 5.0 Volts

RθJL : 10 ℃/W

Contact Now

P6KE68A

P6KE68A 600 Watts Transient Voltage Suppressor double diode model Features

UL Recognized File # E-326243

Qualified as per AEC-Q101

Plastic package has Underwriters Laboratory Flammability Classification 94V-0

600 watts surge capability at 10 / 1000 us waveform

Excellent clamping capability

Low Dynamic impedance

Fast response time: Typically less than 1.0ps from 0 volt to VBR for unidirectional and 5.0ns for bidirectional

Typical IR less than 1uA above 10V

High temperature soldering guaranteed: 260℃ / 10 seconds / .375",(9.5mm) lead length / 5lbs., (2.3kg) tension

Green compound with suffix "G" on packing code & prefix "G" on datecode

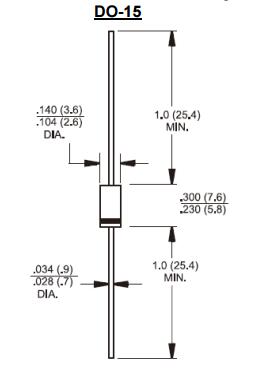

Mechanical Data

Case: Molded plastic

Lead: Pure tin plated lead free, solderable per MIL-STD-202, Method 208

Polarity: Color band denotes cathode except bipolar

Weight: 0.42 gram

P6KE68A 600 Watts Transient Voltage Suppressor double diode model
