1N5817 thru 1N5819

Schottky Barrier Rectifiers

Reverse Voltage 20 to 40V

Forward Current 1.0A

Features

• Plastic package has Underwriters Laboratory Flammability Classification 94V-0

• Low power loss, high efficiency

• For use in low voltage high frequency inverters, free wheeling, and polarity protection applications

• Guardring for overvoltage protection

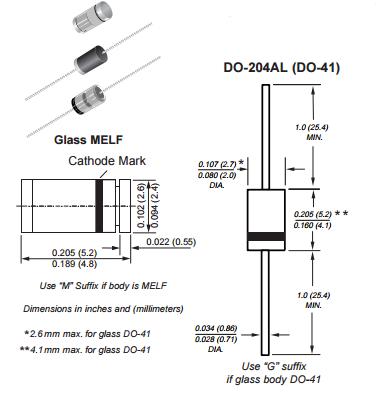

Mechanical Data

Case: JEDEC DO-204 AL molded plastic body, glass body or glass MELF body
Terminals: Plated leads, solderable per MIL-STD-750, Method 2026
High temperature soldering guaranteed: 250°C/10 seconds at terminals for MELF and 0.375” (9.5mm) lead length, 5lbs (2.3kg) tension for axials
Polarity: Color band denotes cathode end (band is green on MELF)
Weight: plastic body DO-41: 0.34g
- glass body DO-41: 0.35g
- glass MELF: 0.25g

Maximum Ratings and Thermal Characteristics (T_A = 25°C unless otherwise noted)

Parameter	Symbol	1N5817	1N5818	1N5819	Unit
* Maximum repetitive peak reverse voltage	V_RRM	20	30	40	V
Maximum RMS voltage	V_RMS	14	21	28	V
* Maximum DC blocking voltage	V_DC	20	30	40	V
* Maximum non-repetitive peak reverse voltage	V_RSM	24	36	48	V
* Maximum average forward rectified current 0.375" (9.5mm) lead length at TL=90°C	I_F(AV)	1.0			A
* Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) at TL=70°C	I_FSM	25			A
Typical thermal resistance – junction-to-ambient (glass) (Note 1) – junction-to-ambient (plastic) – junction-to-lead (plastic)	R_ΘJA R_ΘJA R_ΘJL	130 50 15			°C/W
* Storage temperature range	T_J, T_STG	–65 to +125			°C

*JEDEC registered values

Notes: (1) Thermal resistance from junction to lead vertical P.C.B. mounted, 0.375" (9.5mm) lead length with 1.5 x 1.5” (38 x 38mm) copper pads
