D30E60 Rectifier Diode , High Speed Switching Diode 600 V Repetitive peak reverse voltage

Product Categories
Anterwell Technology Ltd.
Contact Now

D30E60 Rectifier Diode , High Speed Switching Diode 600 V Repetitive peak reverse voltage

Brand Name : Anterwell

Model Number : D30E60

Certification : new & original

Place of Origin : original factory

MOQ : 20pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 8200pcs

Delivery Time : 1 day

Packaging Details : Please contact me for details

Repetitive peak reverse voltage : 600 V

Continous forward current : 52.3 A

Surge non repetitive forward current : 117 A

Maximum repetitive forward current : 81 A

Power dissipation : 142.9 W

Operating and storage temperature : -55...+175 °C

Contact Now



Stock Offer (Hot Sell)

Part No. Quantity Brand D/C Package
G5V-1-DC9 6255 OMRON 15+ DIP
G5V-2-12VDC 7727 OMRON 14+ DIP
G60N100BNTD 3498 FAIRCHILD 13+ TO-264
G65SC51P-2 6939 CMD 16+ DIP-28
G6K-2F-Y-5VDC 10509 OMRON 13+ SOP-8
GAL16V8D-25LP 5311 LATTICE 16+ DIP-20
GBL08-E3/51 13704 VISHAY 14+ DIP-4
GBPC3508W-E4/51 8669 VISHAY 16+ DIP-4
GBU408 90000 SEP 13+ ZIP-4
GBU6K 14556 LRC 13+ SIP-4
GBU8M 17593 VISHAY 15+ DIP-4
GE865-QUAD 1285 TELIT 14+ GPRS
GIPS20K60 2254 ST 13+ MODULE
GL34A 4000 DIOTEC 13+ DO-213AA
GL41D 20000 GS 13+ LL41
GL852G-MNG12 7574 GENESYS 15+ LQFP-48
GL865 DUAL 1174 TELIT 10+ GPRS
GLL4760-E3/97 24000 VISHAY 10+ NA
GP1S094HCZ0F 5752 SHARP 13+ DIP-4
GS2978-CNE3 2125 GENNUM 15+ QFN16
GS2984-INE3 1336 GENNUM 13+ QFN
GS2988-INE3 6693 GENNUM 16+ QFN16
GS3137-08-TAZ 2008 CONEXANT 09+ TSSOP
GSIB2580-E3/45 4938 VISHAY 16+ GSIB-5S
GSOT03C-GS08 7000 VISHAY 15+ SOT-23
GVA-63+ 8824 MINI 15+ SOT-23
GVA-84+ 4397 MINI 14+ SOT-89
H11AA1SR2M 14966 FAIRCHILD 14+ SOP-6
H11AA4 15037 FAIRCHILD 14+ DIP
H11AG1SR2M 4006 FAIRCHILD 14+ SOP-6





IDP30E60 IDB30E60

Fast Switching EmCon Diode



Feature

• 600 V EmCon technology

• Fast recovery

• Soft switching

• Low reverse recovery charge

• Low forward voltage

• 175°C operating temperature

• Easy paralleling



Product Summary

VRRM 600 V
IF 30 A
VF 1.5 V
Tjmax 175 °C



  P-TO220-3.SMD          P-TO220-2-2

D30E60 Rectifier Diode , High Speed Switching Diode 600 V Repetitive peak reverse voltage



Maximum Ratings, at Tj = 25 °C, unless otherwise specified

Parameter Symbol Value Unit
Repetitive peak reverse voltage VRRM 600 V

Continous forward current

TC=25°C

TC=90°C

 IF



52.3

34.9

 A

Surge non repetitive forward current

TC=25°C, tp=10 ms, sine halfwave

 IFSM 117 A

Maximum repetitive forward current

TC=25°C, tp limited by Tjmax, D=0.5

 IFRM 81 A

Power dissipation

TC=25°C

TC=90°C

 Ptot



142.9

80.9

 W
Operating and storage temperature Tj , Tstg -55...+175 °C

Soldering temperature

1.6mm(0.063 in.) from case for 10s

 TS 255 °C



TO-220-2-2

D30E60 Rectifier Diode , High Speed Switching Diode 600 V Repetitive peak reverse voltage

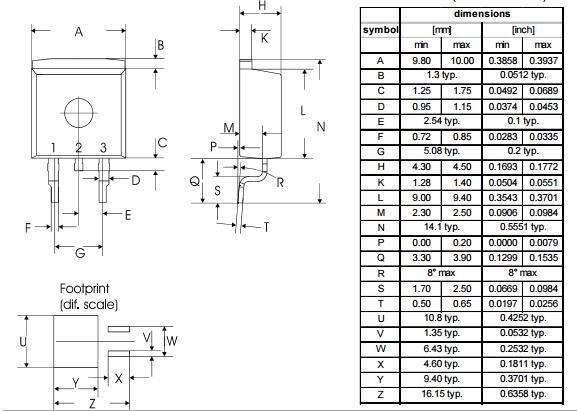

TO-220-3-45 (P-TO220SMD)

D30E60 Rectifier Diode , High Speed Switching Diode 600 V Repetitive peak reverse voltage
