MC78M05CDTRKG Electronic IC Chips 500 mA Positive Voltage Regulators

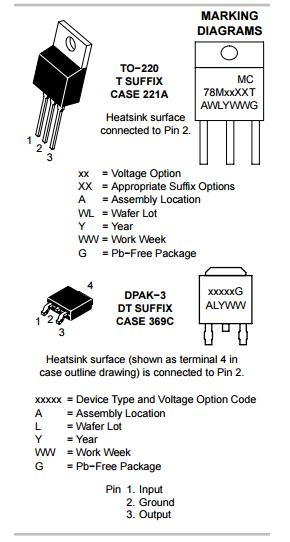

MC78M00, MC78M00A Series

500 mA Positive Voltage Regulators

The MC78M00/MC78M00A Series positive voltage regulators are identical to the popular MC7800 Series devices, except that they are specified for only half the output current. Like the MC7800 devices, the MC78M00 three−terminal regulators are intended for local, on−card voltage regulation.

Internal current limiting, thermal shutdown circuitry and safe−area compensation for the internal pass transistor combine to make these devices remarkably rugged under most operating conditions. Maximum output current, with adequate heatsinking is 500 mA.

Features

• No External Components Required

• Internal Thermal Overload Protection

• Internal Short Circuit Current Limiting

• Output Transistor Safe−Area Compensation

• MC78M00A High Accuracy (±2%) Available for 5.0 V, 8.0 V, 12 V and 15 V

• Pb−Free Packages are Available*

MAXIMUM RATINGS (T_A = 25°C, unless otherwise noted) (Note 1)

Maximum ratings are those values beyond which device damage can occur. Maximum ratings applied to the device are individual stress limit values (not normal operating conditions) and are not valid simultaneously. If these limits are exceeded, device functional operation is not implied, damage may occur and reliability may be affected.

1. This device series contains ESD protection and exceeds the following tests:

    Human Body Model 2000 V per MIL−STD−883, Method 3015.

    Machine Model Method 200 V.
