Bridge Type Rectifier Diode

Brand Name : ON

Model Number : 1SMA15CAT3G

Certification : Original Factory Pack

Place of Origin : Malaysia

MOQ : 500pcs

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 50000PCS

Delivery Time : 1 Day

Packaging Details : 3000pcs/Reel

Main Line : Ic,module,transistor,diodes,capacitor,resistor etc

Temperature : -60 to +150 ℃

Voltage : 10V---78V

Peak Power : 400W

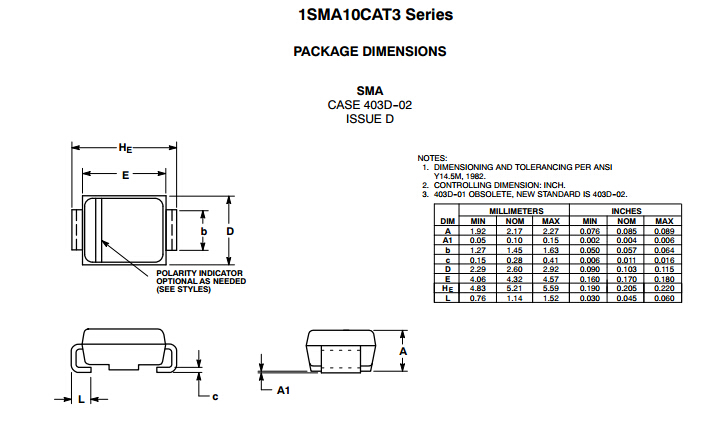

Package : SMA

Condition : Rohs

Contact Now

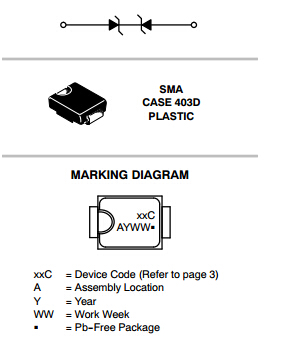

ON 1SMA15CAT3G

400 Watt Peak Power Zener Transient Voltage Suppressors

Features

• Working Peak Reverse Voltage Range - 10 V to 78 V

• Standard Zener Breakdown Voltage Range - 11.7 V to 91.3 V

• Peak Power - 400 Watts @ 1 ms

• ESD Rating of Class 3 (> 16 kV) per Human Body Model

• Response Time is Typically < 1 ns

• Flat Handling Surface for Accurate Placement •Package Design for Top Slide or Bottom Circuit Board Mounting •Low Profile Package •Pb-Free Packages are Available Mechanical Characteristics: CASE: Void‐free, transfer‐molded plastic FINISH: All external surfaces are corrosion resistant and leads are readily solderable MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260°C for 10 Seconds POLARITY: Cathode polarity notch does not indicate polarity MOUNTING POSITION: Any PLASTIC

Bridge Type Rectifier Diode

MAXIMUM RATING

Rating	Symbol	Value	Unit
Peak Power Dissipation T_L=25 ℃ Pulse Width=1 ms	Ppx	400	W
DC Power Dissipation T_L=25 ℃ Derate Above 75 ℃ Thermal Resistance from Junction-to-Lead	Pd RøJL	1.5 20 50	W mW/℃ ℃/W
DC Power Dissipation T_L=25 ℃ Derate Above 75 ℃ Thermal Resistance from Junction-to-Ambient	Pd RøJA	0.5 4.0 250	W mW/℃ ℃/W
Operating and Storage Temperature Range	TJ Tstg	-60 to +150	℃

Bridge Type Rectifier Diode
