Digital IC Circuits APM4953K Dual P Channel Enhancement Mode

Name: Digital IC Circuits APM4953K Dual P Channel Enhancement Mode
Brand: ANPEC
Price: 1 USD

Buy cheap Digital IC Circuits APM4953K Dual P Channel Enhancement Mode product

Brand Name : ANPEC

Model Number : APM4953KC-TRG

Certification : Original Factory Pack

Place of Origin : Philippines

MOQ : 20

Price : Negotiate

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 20000

Delivery Time : 1

Packaging Details : please contact me for details

Features : -30V/-4.9A ,

Features2 : RDS(ON)=53mΩ(typ.) @ VGS=-10V

Features3 : RDS(ON)=80mΩ(typ.) @ VGS=-4.5V

Features4 : • Super High Dense Cell Design

Features5 : Reliable and Rugged

Features6 : SOP-8 Package

Contact Now

 Digital IC Circuits APM4953K Dual P Channel Enhancement Mode

 Feature

• -30V/-4.9A ,

RDS(ON)=53mΩ(typ.) @ VGS=-10V

RDS(ON)=80mΩ(typ.) @ VGS=-4.5V

• Super High Dense Cell Design

• Reliable and Rugged

• SOP-8 Package

• Lead Free Available (RoHS Compliant)

Application:

• Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems

Digital IC Circuits APM4953K Dual P Channel Enhancement Mode Note: ANPEC lead-free products contain molding compounds/die attach materials and 100% matte in plate termination finish; which are fully compliant with RoHS and compatible with both SnPb and lead-free soldiering operations. ANPEC lead-free products meet or exceed the lead-free requirements of IPC/JEDEC J STD-020C for MSL classification at lead-free peak reflow temperature.

Symbol	Parameter	Rating	Unit
VDSS	Drain-Source Voltage	-30	V
VGSS	Gate-Source Voltage	±25	V
I_D*	Continuous Drain Current VGS=-10V	-4.9	A
I_DM*	Pulsed Drain Current VGS=-10V	-20	A
I_S*	Diode Continuous Forward Current	-2	A
T_J	Maximum Junction Temperature	150	°C
T_STG	Storage Temperature Range	-55 to 150	°C
P_D*	Power Dissipation for Single OperationTA=25°C	2	W
P_D*	Power Dissipation for Single Operation TA=100°C	0.8	W
R_θJA*	Thermal Resistance-Junction to Ambient	62.5	°C/W

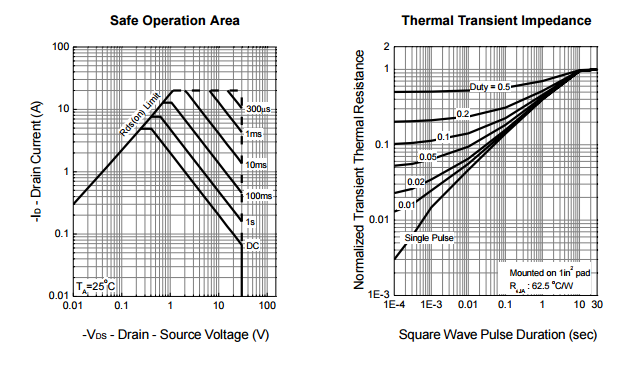

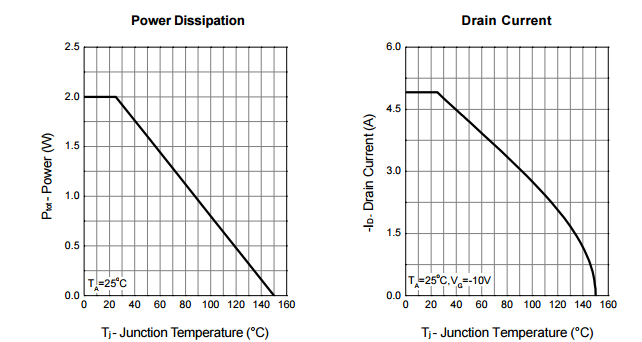

Typical Characteristic

Digital IC Circuits APM4953K Dual P Channel Enhancement Mode
