BTA/BTB41-600B  40A TRIACS

GENERAL DESCRIPTION

Available either in through-hole or surface-mount packages, the BTA/BTB41 - 600B triac series is suitable for general purpose AC switching. They can be used as an ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits... or for phase control operation in light dimmers, motor speed controllers, ... The snubberless versions (BTA/BTB...W series) are specially recommended for use on inductive loads, thanks to their high commutation performances. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards.

Available in high power packages, the BTA/ BTB40-41 series is suitable for general purpose AC power switching. They can be used as an ON/ OFF function in applications such as static relays, heating regulation, water heaters, induction motor starting circuits, welding equipment... or for phase control operation in high power motor speed controllers, soft start circuits... Thanks to their clip assembly technique, they provide a superior performance in surge current handling capabilities. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500 V RMS) complying with UL standards (File ref.: E81734). Symbol Value Unit IT(RMS) 40 A VDRM/VRRM 600 and 800 V IGT (Q1) 50 mA ABSOLUTE MAXIMUM RATIN

ABSOLUTE MAXIMUM RATINGS ELECTRICAL CHARACTERISTICS ( Ta = 25 C)

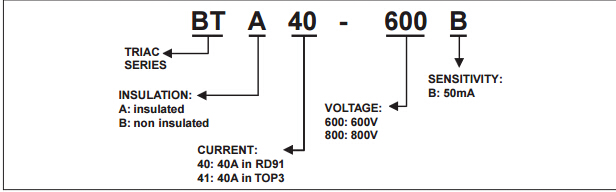

ORDERING INFORMATION

OTHER INFORMATION

Fig. 1: Maximum power dissipation versus RMS on-state current (full cycle).

Fig. 2: RMS on-state current versus case temperature (full cycle).

Fig. 3: Relative variation of thermal impedance versus pulse duration.

The snubberless versions (BTA/BTB...W series) are specially recommended for use on inductive loads, thanks to their high commutation performances. By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500V RMS) complying with UL standards.
