Camera 5W LED Diode SMD PT334-6C 5mm Phototransistor T-1 3/4

Name: Camera 5W LED Diode SMD PT3346C 5mm Phototransistor T1 34
Brand: LITEON
Price: 1 USD

Buy cheap Camera 5W LED Diode SMD PT334-6C 5mm Phototransistor T-1 3/4 product

Brand Name : LITEON

Model Number : LTE-S3201-BN

Certification : Original Factory Pack

Place of Origin : CHINA

MOQ : 500pcs

Price : negotiation

Payment Terms : T/T , Western Union, Paypal

Supply Ability : 120000PCS

Delivery Time : 1 Day

Packaging Details : please ask for details

Main Line : Ic,module,transistor,diodes,capacitor,resistor etc

Shipment : DHL, FeDEX, UPS, TNT

Reverse Voltage : 5V

Storage Temperature Range : -40℃ ~ + 85℃

Power Dissipation : 100 mW

Operating Temperature Range : -25 ℃~ +85℃

Lead Soldering Temperature : 260 ℃

Contact Now

Camera 5W LED Diode SMD PT334-6C 5mm Phototransistor T-1 3/4

PT334-6C 5mm Phototransistor T-1 3/4 Camera 5W LED Diode SMD PT334-6C 5mm Phototransistor T-1 3/4

Features

․Fast response time ․High photo sensitivity

․Pb free

․The product itself will remain within RoHS compliant version

Descriptions

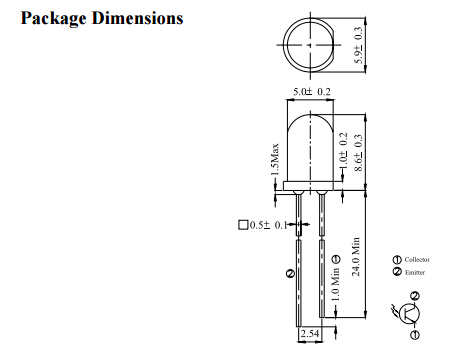

PT334-6C is a high speed and high sensitive silicon NPN epitaxial planar phototransistor in a standard 5Φ package. Due to is water clear epoxy the device is sensitive to visible and near infrared radiation.

Applications

․Infrared applied system

․Floppy disk drive

․Camera

ABSOLUTE MAXIMUM RATINGS AT TA=25℃

PARAMETER	SYMBOL	MAXIMUM RATING	UNIT
Collector-Emitter Voltage	Vceo	30	V
Emitter-Collector-Voltage	Veco	5	V
Collector Current	Ic	20	Ma
Operating Temperature Range	Topr	-25 to +85	℃
Storage Temperature Range	Tstg	-40 to + 85	℃
Lead Soldering Temperature	Tsol	260	℃
Power Dissipation at (or below) 25℃ Free Air Temperature	Pc	75	mW

Camera 5W LED Diode SMD PT334-6C 5mm Phototransistor T-1 3/4
