ISL6364CRZ Dual 4Phase + 1Phase PWM Controller Integrated Circuit Chip for VR12/IMVP7 Applications

Name: ISL6364CRZ Dual 4Phase 1Phase PWM Controller Integrated Circuit Chip for VR12IMVP7 Applications
Brand: INTERSIL
Price: 1 USD

Brand Name : INTERSIL

Model Number : ISL6364CRZ

Certification : Original Factory Pack

Place of Origin : Japan

MOQ : 20pcs

Price : Negotiation

Payment Terms : T/T, Western Union,PayPal

Supply Ability : 5200PCS

Delivery Time : 1 Day

Packaging Details : please contact me for details

High-side floating absolute voltage : -0.3 625

High-side floating supply offset voltage : VB - 25 VB + 0.3

High-side floating output voltage : VS - 0.3 VB + 0.3

Low-side and logic fixed supply voltage : -0.3 25

Low-side output voltage : -0.3 VCC + 0.3

Programmable deadtime and shutdown pin voltage : VSS - 0.3 VCC + 0.3

Contact Now

Dual 4-Phase + 1-Phase PWM Controller for VR12/IMVP7 Applications

Absolute Maximum Ratings

VCC, VR_RDY, VR_RDYS. . . . . . . . . . . . . . . . +6V ISL6364CRZ Dual 4Phase + 1Phase PWM Controller Integrated Circuit Chip for VR12/IMVP7 Applications

All Other Pins . . . . . . . . . .GND -0.3V to VCC + 0.3V

Recommended Operating Conditions

Supply Voltage, VCC . . . . . . . . .. . . . . .+5V ±5%

Ambient Temperature ISL6364CRZ . . . . . . 0°C to +70°C

ISL6364IRZ . . . . . . . . . . . . . . . .-40°C to +85°C

Thermal Information

Thermal Resistance (Notes 4, 5) θJA (°C/W) θJC (°C/W)

48 Ld 6x6 QFN Package . . . . . . . . . . . . . . . 27 1.5

Maximum Junction Temperature . . .. . . . . . .+150°C

Maximum Storage Temperature Range . . . . . . .-65°C to +150°C

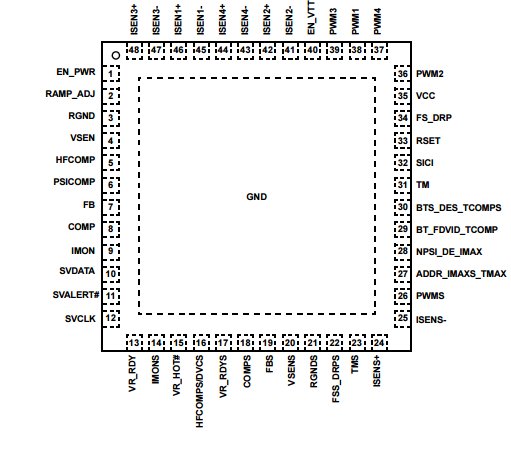

Pin Configuration

ISL6364CRZ Dual 4Phase + 1Phase PWM Controller Integrated Circuit Chip for VR12/IMVP7 Applications
