512K I2C™ Serial Integrated Circuit Chip EEPROM 24LC512-I-SM

Features:

• Single Supply with Operation down to 1.7V for

24AA512 and 24FC512 Devices, 2.5V for 24LC512 Devices

• Low-Power CMOS Technology:

- Active current 400 uA, typical

- Standby current 100 nA, typical

• 2-Wire Serial Interface, I2C™ Compatible

• Cascadable for up to Eight Devices

• Schmitt Trigger Inputs for Noise Suppression

• Output Slope Control to Eliminate Ground Bounce

• 100 kHz and 400 kHz Clock Compatibility

• Page Write Time 5 ms max.

• Self-Timed Erase/Write Cycle

• 128-Byte Page Write Buffer

• Hardware Write-Protect

• ESD Protection >4000V

• More than 1 Million Erase/Write Cycles

• Data Retention > 200 years

• Packages Include 8-lead PDIP,

SOIJ, SOIC, TSSOP, DFN,

Chip Scale and 14-lead TSSOP

• Pb-Free and RoHS Compliant

• Temperature Ranges:

- Industrial (I): -40C to +85C

- Automotive (E):-40C to +125C

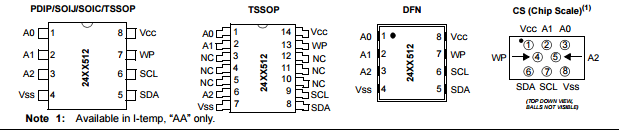

Package Type

ELECTRICAL CHARACTERISTICS

VCC..............................................................................................................6.5V All inputs and outputs w.r.t. VSS ......................................................................................................... -0.6V to VCC +1.0V Storage temperature ........................................................................................................-65°C to +150°C Ambient temperature with power applied....................................-40°C to +125°C ESD protection on all pins  4 kV.
