TIP120 Power Mosfet Transistor Complementary Silicon Transistors

Product Categories

Anterwell Technology Ltd.

Contact Now

Name: TIP120 Power Mosfet Transistor Complementary Silicon Transistors
Brand: Anterwell
Price: 1 USD

Brand Name : Anterwell

Model Number : TIP120

Certification : new & original

Place of Origin : original factory

MOQ : 10pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 8600pcs

Delivery Time : 1 day

Packaging Details : Please contact me for details

Collector-Base Voltage : 60 V

Collector-Emitter Voltage : 60 V

Emitter-Base Voltage : 5 V

Collector Current (DC) : 5 A

Collector Current (Pulse) : 8 A

Base Current (DC) : 120 mA

Contact Now

TIP120/121/122

Medium Power Linear Switching Applications

• Complementary to TIP125/126/127

NPN Epitaxial Darlington Transistor

TIP120 Power Mosfet Transistor Complementary Silicon Transistors

Absolute Maximum Ratings T_C=25°C unless otherwise noted

Symbol	Parameter	Value	Units
V_CBO	Collector-Base Voltage : TIP120 : TIP121 : TIP122	60 80 100	V V V
V_CEO	Collector-Emitter Voltage : TIP120 : TIP121 : TIP122	60 80 100	V V V
V_EBO	Emitter-Base Voltage	5	V
I_C	Collector Current (DC)	5	A
I_CP	Collector Current (Pulse)	8	A
I_B	Base Current (DC)	120	mA
P_C	Collector Dissipation (Ta=25°C)	2	W
P_C	Collector Dissipation (T_C=25°C)	65	W
T_J	Junction Temperature	150	°C
T_STG	Storage Temperature	- 65 ~ 150	°C

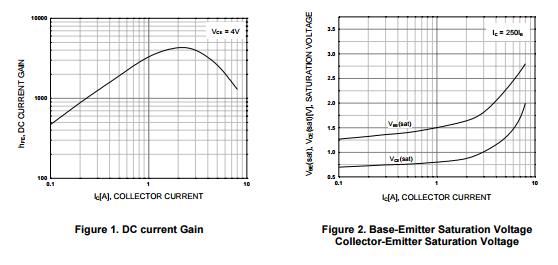

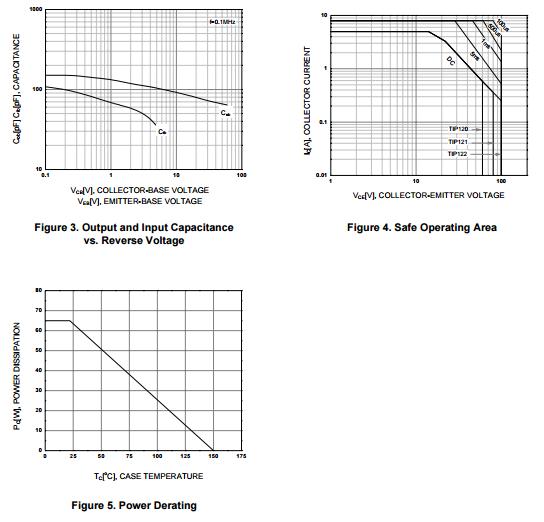

Typical characteristics

TIP120 Power Mosfet Transistor Complementary Silicon Transistors

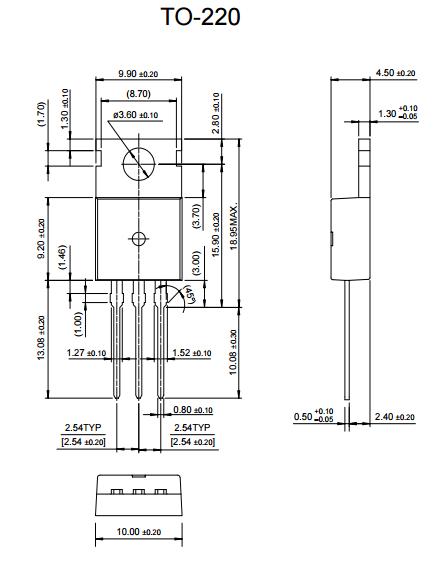

Package Demensions

TIP120 Power Mosfet Transistor Complementary Silicon Transistors
