LM1117DT- 3.3 800mA Low Dropout Linear Regulator color tv ic Signal Schottky diode

LM1117DT- 3.3 800mA Low-Dropout Linear Regulator color tv ic price

Features

► Available in 1.8V, 2.5V, 2.85V, 3.3V, 5V, and Adjustable Versions

► Space Saving SOT-223 and LLP Packages

► Current Limiting and Thermal Protection

► Output Current 800mA

► Line Regulation 0.2% (Max)

► Load Regulation 0.4% (Max)

► Temperature Range

— LM1117 0˚C to 125˚C

— LM1117I −40˚C to 125˚C

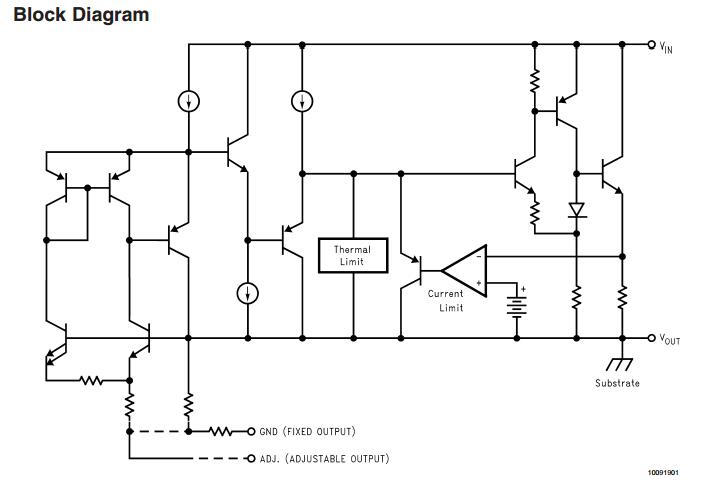

General Description The LM1117 is a series of low dropout voltage regulators with a dropout of 1.2V at 800mA of load current. It has the same pin-out as National Semiconductor’s industry standard LM317.

The LM1117 is available in an adjustable version, which can set the output voltage from 1.25V to 13.8V with only two external resistors. In addition, it is also available in five fixed voltages, 1.8V, 2.5V, 2.85V, 3.3V, and 5V

The LM1117 offers current limiting and thermal shutdown. Its circuit includes a zener trimmed bandgap reference to assure output voltage accuracy to within ±1%. The LM1117 series is available in LLP, TO-263, SOT-223, TO-220, and TO-252 D-PAK packages. A minimum of 10µF tantalum capacitor is required at the output to improve the transient response and stability.
