High Accuracy Ultralow I Low Dropout Regulator digital Integrated Circuit Chip ADP3338AKCZ-3.3-RL

ADP3338AKCZ-3.3-RL High Accuracy, Ultralow I Low Dropout Regulator

FEATURES
High accuracy over line and load: ±0.8% @ 25°C,
±1.4% over temperature
Ultralow dropout voltage: 190 mV (typ) @ 1 A
Requires only CO = 1.0 µF for stability
anyCAP is stable with any type of capacitor (including MLCC)
Current and thermal limiting
Low noise
2.7 V to 8 V supply range
−40°C to +85°C ambient temperature range
​SOT-223 package
APPLICATIONS
Notebook, palmtop computers
SCSI terminators
Battery-powered systems
Bar code scanners
Camcorders, cameras
Home entertainment systems
Networking systems
DSP/ASIC supplies

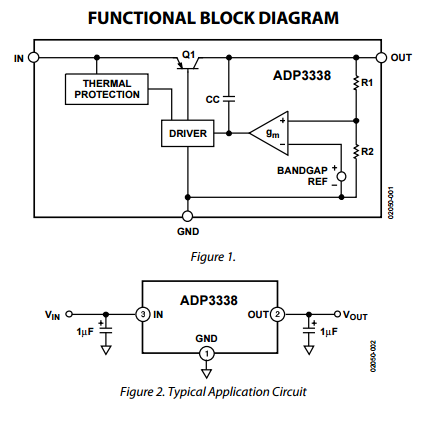

GENERAL DESCRIPTION

The ADP3338 is a member of the ADP33xx family of precision, low dropout (LDO), anyCAP voltage regulators. The ADP3338 operates with an input voltage range of 2.7 V to 8 V and delivers a load current up to 1 A. The ADP3338 stands out from conventional LDOs with a novel architecture and an enhanced process that offers performance advantages and higher output current than its competition. Its patented design requires only a 1 µF output capacitor for stability. This device is insensitive to output capacitor equivalent series resistance (ESR), and is stable The ADP3338 is a member of the ADP33xx family of precision, low dropout (LDO), anyCAP voltage regulators. The ADP3338 operates with an input voltage range of 2.7 V to 8 V and delivers a load current up to 1 A. The ADP3338 stands out from conventional LDOs with a novel architecture and an enhanced process that offers performance advantages and higher output current than its competition. Its patented design requires only a 1 µF output capacitor for stability. This device is insensitive to output capacitor equivalent series resistance (ESR), and is stable
ABSOLUTE MAXIMUM RATINGS

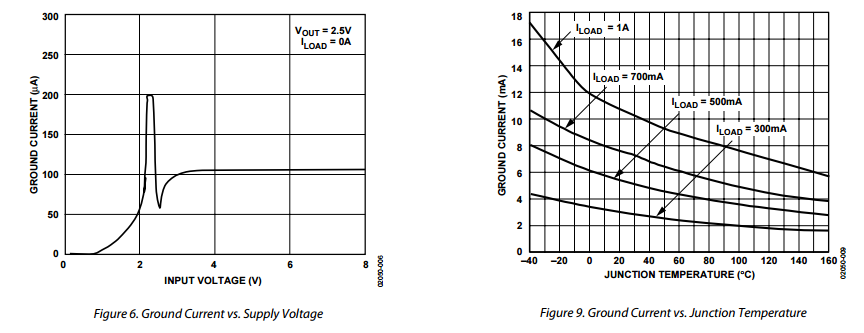

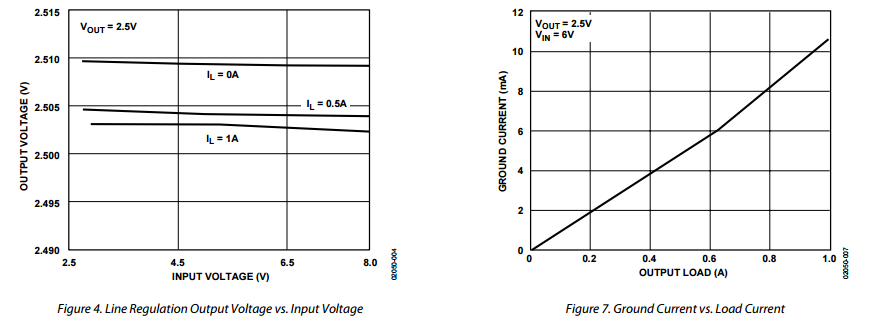

TYPICAL PERFORMANCE CHARACTERISTICS
TA = 25°C, unless otherwise noted
