New & Original Power Mosfet Transistor N-Channel Silicon Power Mosfet 2sk3522

Name: New amp Original Power Mosfet Transistor NChannel Silicon Power Mosfet 2sk3522
Brand: Anterwell
Price: 1 USD

Brand Name : Anterwell

Model Number : 2SK3522

Certification : new & original

Place of Origin : original factory

MOQ : 20pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000pcs

Delivery Time : 1 day

Packaging Details : Please contact me for details

Continuous drain current : ±21 A

Pulsed drain current : ±84 A

Gate-source voltage : ±30 V

Repetitive or non-repetitive : 21 A

Maximum Avalanche Energy : 400 mJ

Maximum Drain-Source dV/dt : 20 kV/µs

Operating temperature : +150 °C

storage temperature range : -55 to +150 °C

Contact Now

N-CHANNEL SILICON POWER MOSFET

Features Outline Drawings

High speed switching New & Original Power Mosfet Transistor N-Channel Silicon Power Mosfet 2sk3522

Low on-resistance

No secondary breadown

Low driving power

Avalanche-proof

Applications

Switching regulators

UPS (Uninterruptible Power Supply)

DC-DC converters

Equivalent circuit schematic

New & Original Power Mosfet Transistor N-Channel Silicon Power Mosfet 2sk3522

Maximum ratings and characteristicAbsolute maximum ratings

(Tc=25°C unless otherwise specified)

Item	Symbol		Ratings	Unit
Drain-source voltage	V_DS		500	V
Drain-source voltage	V_{DSX *5}		500	V
Continuous drain current	I_D		±21	A
Pulsed drain current	I_D(puls]		±84	A
Gate-source voltage	V_GS		±30	V
Repetitive or non-repetitive	I_AR *2		21	A
Maximum Avalanche Energy	E_AS *1		400	mJ
Maximum Drain-Source dV/dt	dVDS/dt *4		20	kV/µs
Peak Diode Recovery dV/dt	dV/dt *3		5	kV/µs
Max. power dissipation	P_D	Ta=25°C	2.5	W
Max. power dissipation	P_D	Tc=25°C	220	W
Operating and storage temperature range	T_ch		+150	°C
Operating and storage temperature range	T_stg		-55 to +150	°C

*1 L=1.67mH, Vcc=50V

*2 Tch 150°C < = <

*3 IF -I <= D, -di/dt=50A/µs, Vcc BV <= DSS, Tch 150°C

*4 VDS 500V

*5 V <= GS=-30V

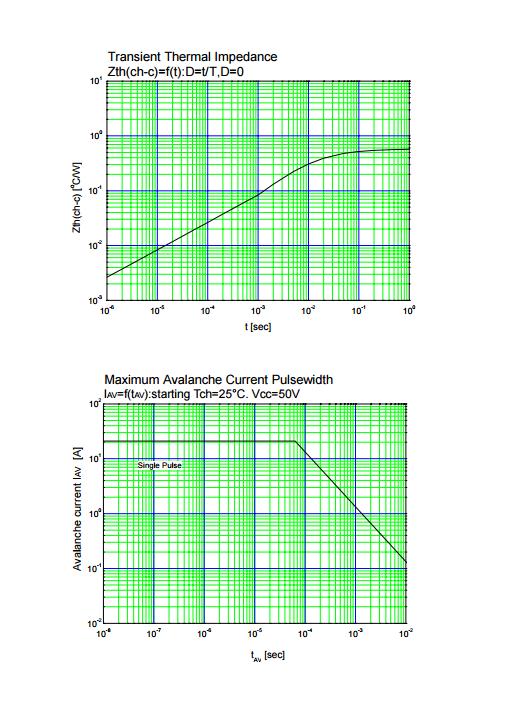

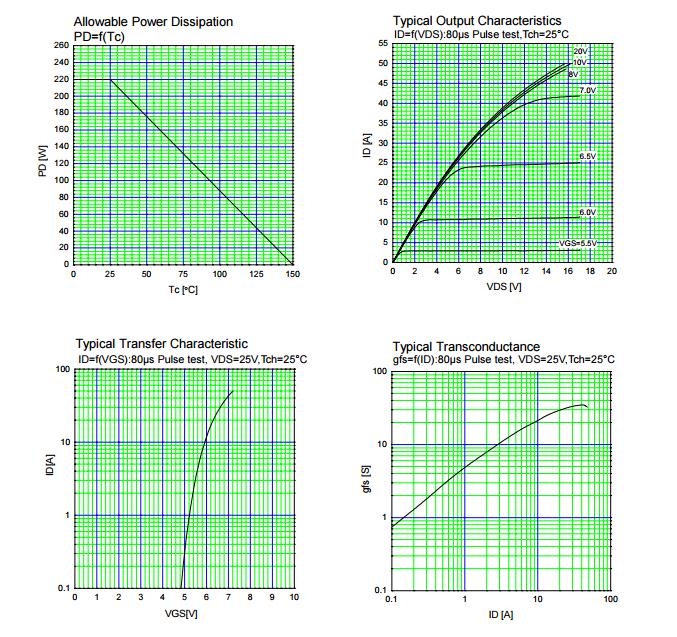

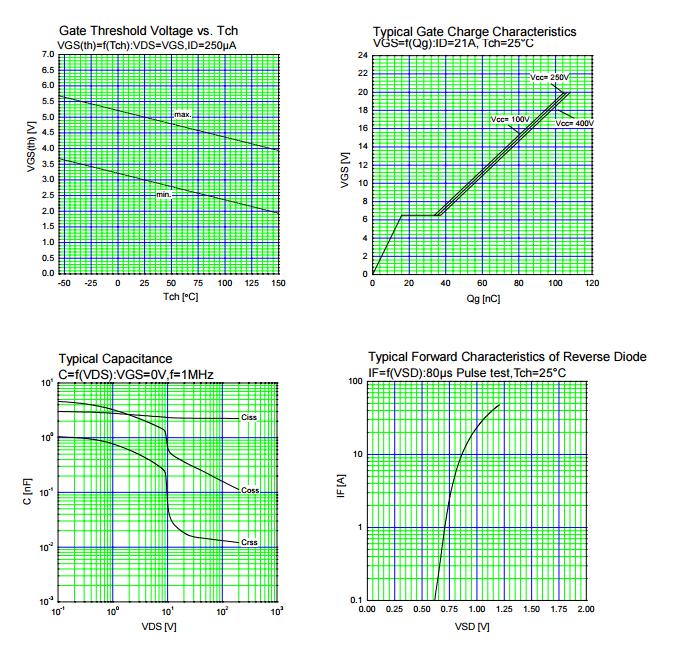

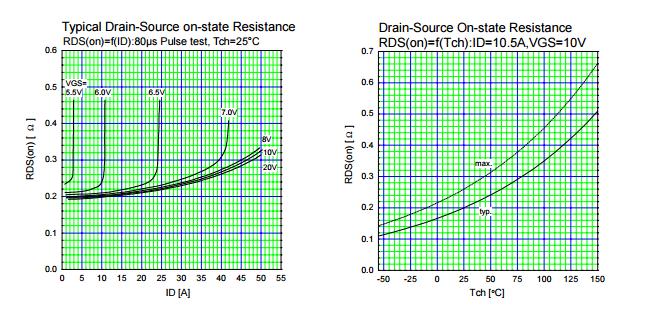

Characteristics
