Silicon PNP Power Transistors 2SA1943



DESCRIPTION

·With TO-3PL package Silicon PNP Power Transistors ( Power Amplifier Applications ) 2SA1943

·Complement to type 2SC5200





APPLICATIONS

·Power amplifier applications

·Recommended for 100W high fidelity

 audio frequency amplifier output stage





PINNING

    PIN    DESCRIPTION
     1   Emitter
     2

  Collector;connected to

  mounting base
     3   Base









CHARACTERISTICS Tj=25℃ unless otherwise specified

 SYMBOL        PARAMETER    CONDITIONS    MIN    TYP.   MAX   UNIT
 V(BR)CEO  Collector-emitter breakdown voltage  IC=-50mA ;IB=0   -230        V
 VCEsat  Collector-emitter saturation voltage  IC=-8A IB=-0.8A       -3.0    V
 VBE  Base-emitter voltage  IC=-7A ; VCE=-5V       -1.5    V
 ICBO  Collector cut-off current  VCB=-230V; IE=0       -5   μA
 IEBO  Emitter cut-off current  VEB=-5V; IC=0       -5   μA
 hFE-1  DC current gain  IC=-1A ; VCE=-5V    55     160
 hFE-2  DC current gain  IC=-7A ; VCE=-5V    35
 fT  Transition frequency  IC=-1A ; VCE=-5V      30     MHz
 COB  Collector output capacitance  f=1MHz;VCB=-10V     360     pF



‹ hFE-1 classifications

      R          O
   55-110       80-160



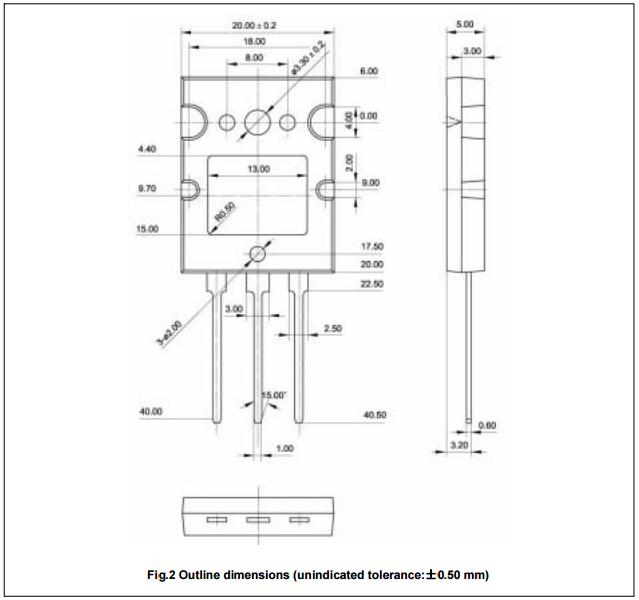

PACKAGE OUTLINE

Silicon PNP Power Transistors ( Power Amplifier Applications ) 2SA1943





Silicon PNP Power Transistors ( Power Amplifier Applications ) 2SA1943
