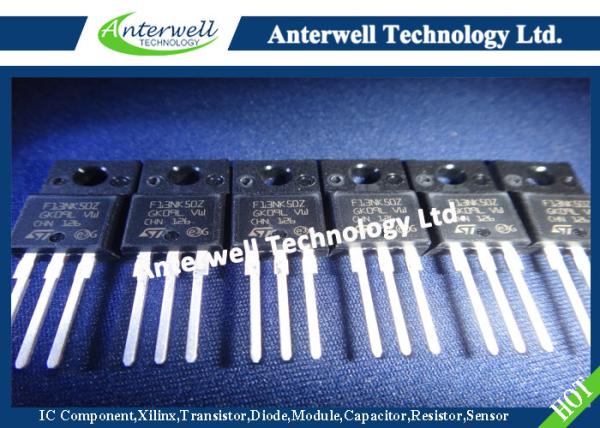

N channel Zener protected Super MESHTM Power MOSFET , STF13NK50Z

Brand Name : Anterwell

Model Number : STF13NK50Z

Certification : new & original

Place of Origin : original factory

MOQ : 10pcs

Price : Negotiate

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 6900pcs

Delivery Time : 1 day

Packaging Details : Please contact me for details

Drain-source voltage : 500 V

Gate-source voltage : ± 30 V

Drain current (continuous) at TC = 25 °C : 11 A

Drain current (pulsed) : 44 A

Peak diode recovery voltage slope : 4.5 V/ns

Operating junction temperature : -55 to 150 °C

Contact Now


STF13NK50Z, STP13NK50Z, STW13NK50Z

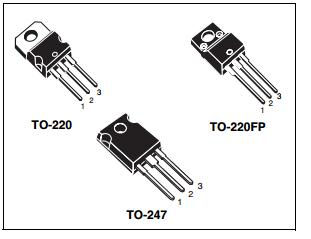

N-channel 500 V, 0.40 Ω, 11 A TO-220, TO-220FP, TO-247 Zener-protected SuperMESHTM Power MOSFET

Features

TypeVDSSRDS(on) maxIDPw
STF13NK50Z500 V<0.48 Ω11 A30 W
STP13NK50Z500 V<0.48 Ω11 A140 W
STW13NK50Z500 V<0.48 Ω11 A140 W


■ Extremely high dv/dt capability
■ 100% avalanche tested
■ Gate charge minimized
■ Very low intrinsic capacitances
■ Very good manufacturing repeatability

Applications
■ Switching application

Description
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout. In addition to pushing on-resistance significantly down, special care is taken to ensure a very good dv/dt capability for the most demanding applications. Such series complements ST full range of high voltage MOSFETs.

Absolute maximum ratings

SymbolParameterValueUnit
TO-220, TO-247TO-220FP
VDSDrain-source voltage (VGS = 0)500V
VGSGate-source voltage± 30V
IDDrain current (continuous) at TC = 25 °C1111(1)A
IDDrain current (continuous) at TC=100 °C6.936.93(1)A
IDM(2)Drain current (pulsed)4444(1)A
PTOTTotal dissipation at TC = 25 °C14030W
 Derating factor1.120.24W/°C
dv/dt(3)Peak diode recovery voltage slope4.5V/ns
VISOInsulation withstand voltage (RMS) from all three leads to external heat sin (t=1 s;TC= 25 °C) 2500V

TJ

Tstg

Operating junction temperature

Storage temperature

-55 to 150°C

1. Limited only by maximum temperature allowed
2. Pulse width limited by safe operating area
3. ISD ≤ 11 A, di/dt ≤ 200 A/µs, VDD ≤ 80% V(BR)DSS

N channel Zener protected Super MESHTM Power MOSFET , STF13NK50Z

Internal schematic diagram
N channel Zener protected Super MESHTM Power MOSFET , STF13NK50Z
