Original 3 Pin Transistor FGA25N120ANTD 1200V NPT Trench IGBT

Name: Original 3 Pin Transistor FGA25N120ANTD 1200V NPT Trench IGBT
Brand: FAIRCHILD
Price: 1 USD

Brand Name : FAIRCHILD

Model Number : FGA25N120ANTD

Certification : Original Factory Pack

Place of Origin : Philippines

MOQ : 20

Price : Negotiate

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 20000

Delivery Time : 1

Packaging Details : please contact me for details

Collector-Emitter Voltage : 1200 V

Gate-Emitter Voltage : ± 20 V

Collector Current : 50 A

Pulsed Collector Current : 90 A

Voltage : 100V

Diode Continuous Forward Current : 25 A

Contact Now

FGA25N120ANTD/FGA25N120ANTD_F109

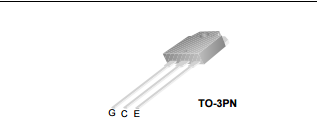

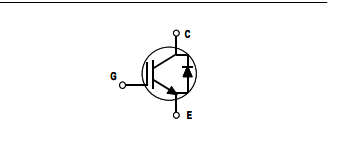

1200V NPT Trench IGBT

Features

• NPT Trench Technology, Positive temperature coefficient

• Low saturation voltage: VCE(sat), typ = 2.0V @ IC = 25A and TC = 25°C

• Low switching loss: Eoff, typ = 0.96mJ @ IC = 25A and TC = 25°C

• Extremely enhanced avalanche capability

Original 3 Pin Transistor FGA25N120ANTD 1200V NPT Trench IGBT Description

Using Fairchild's proprietary trench design and advanced NPT technology, the 1200V NPT IGBT offers superior conduction and switching performances, high avalanche ruggedness and easy parallel operation.

This device is well suited for the resonant or soft switching application such as induction heating, microwave oven, etc.

Symbol	Parameter	Typ.	Max.	Units
R_θJC	Thermal Resistance, Junction-to-Case for IGBT	--	0.4	°C/W
R_θJC	Thermal Resistance, Junction-to-Case for Diode	--	2.0	°C/W
R_θJA	RθJA Thermal Resistance, Junction-to-Ambient	--	40	°C/W

Typical Performance Characteristics

Product Tags:

multi emitter transistor

silicon power transistors

Buy cheap Original 3 Pin Transistor FGA25N120ANTD 1200V NPT Trench IGBT product

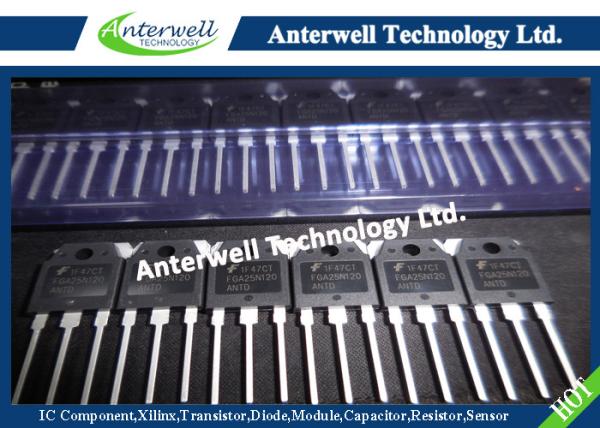

Original 3 Pin Transistor FGA25N120ANTD 1200V NPT Trench IGBT Images
