SINGLE PHASE BRIDGE 3 Pin Transistor , silicon rectifier diode KBP206G

Product Categories

Anterwell Technology Ltd.

Contact Now

Name: SINGLE PHASE BRIDGE 3 Pin Transistor silicon rectifier diode KBP206G
Brand: DIOTECH
Price: 1 USD

Brand Name : DIOTECH

Model Number : KBP206G

Certification : Original Factory Pack

Place of Origin : Philippines

MOQ : 20

Price : Negotiate

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 20000

Delivery Time : 1

Packaging Details : please contact me for details

Maximum Recurrent Peak Reverse Voltage : 800 V

Maximum RMS Bridge Input Voltage : 560 V

Maximum DC Blocking Voltage : 800 V

Maximum Average Forward Output Current at TA = 25o C : 2.0 A

Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC Method) : 60 A

Operating and Storage Temperature Range : -55 to + 150 0 C

Contact Now

SINGLE PHASE BRIDGE 3 Pin Transistor , silicon rectifier diode KBP206G

KBP201G THRU KBP207G

SINGLE PHASE SILICON BRIDGE RECTIFIER

Reverse Voltage - 50 to 1000 Volts Forward Current - 2.0 Ampere

SINGLE PHASE BRIDGE 3 Pin Transistor , silicon rectifier diode KBP206G FE A TURES

● Ideal for printed circuit board

● Surge overload rating: 60A peak

● High case dielectric strength

● High temperature soldering guaranteed: 260°C/10 seconds at 5lbs. (2.3kg) tension

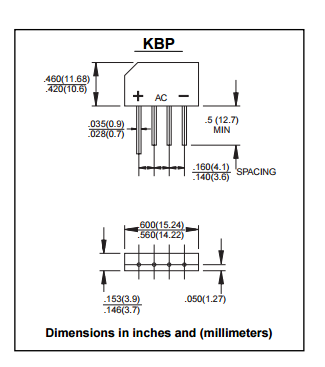

MECHANICAL D A T A

● Case: UL-94 Class V-0 recognized Flame Retardant Epoxy

● Terminals: Plated leads solderable per MIL-STD 202, method 208

● Mounting Position: Any

● Weight: 1.70 g

● Marking: Type Number

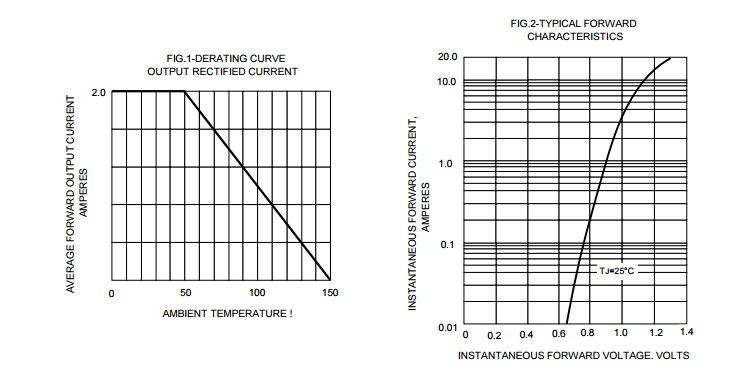

RATINGS AND CHARACTERISTIC CURVES

SINGLE PHASE BRIDGE 3 Pin Transistor , silicon rectifier diode KBP206G
